NF X 15-211 Ductless fume hoods - Filtering safety cabinets - Ventilation
Ventilated cabinet for external connection - High 2 doors - 4 compartments
Model: AF44+XT

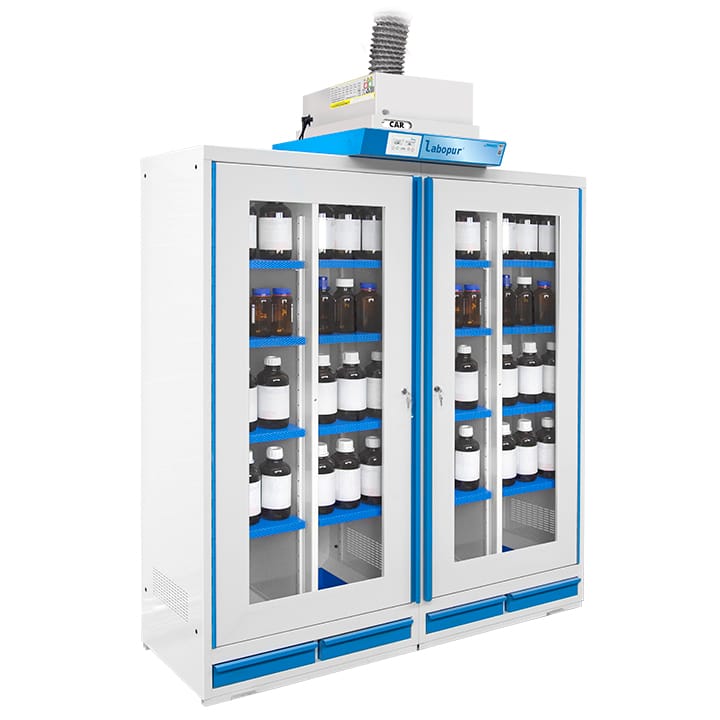

Ventilated cabinet for external connection - High 2 doors - 4 compartments
CE certified. Storage of flammables, corrosives and toxics. Available with different configurations : 1, 2, 3 or 4 compartments. Perforated and reinforced shelves for storage until 80 KG. Normalized labelling provided with the equipment. No modification of building's structure required. Fan in compliance with CE specifications. Directives 2014/35/UE (Basse Tension), 2014/30/UE (CEM). Compliance with the regulations EN 61010-1 :2011+A1 : 2019. ComplianceEN 61326-1 :2013. Conformity IEC 61000-3-2 :2019, IEC 61000-3-3 :2013+A1 :2019. Model: AF44+XT. Compliance: CE. Number of doors: 2. Door closure: manuelle. Number of compartments: 4. Shelves: 16
- CE certified
- Storage of flammables, corrosives and toxics
- Available with different configurations : 1, 2, 3 or 4 compartments
- Perforated and reinforced shelves for storage until 80 KG
- Normalized labelling provided with the equipment
- No modification of building's structure required
- Fan in compliance with CE specifications
- Directives 2014/35/UE (Basse Tension), 2014/30/UE (CEM)
- Compliance with the regulations EN 61010-1 :2011+A1 : 2019
- ComplianceEN 61326-1 :2013
- Conformity IEC 61000-3-2 :2019, IEC 61000-3-3 :2013+A1 :2019.
Technical Specifications
| Model | AF44+XT |
|---|---|
| Compliance | CE |
| Number of doors | 2 |
| Door closure | manuelle |
| Number of compartments | 4 |
| Shelves | 16 |
| Containment sump | 4 |
| Retention capacity (L) | 50 |
| External dimensions HxWxD (mm) | 1940 x 1600 x 650 |
| Internal dimensions HxWxD (mm) | 1660 x (4 x )380 x 500 |
| Load capacity | 40 |
| Storage capacity (L) | 240 |
| Electrical power (W) | 63 |
| Sound power of the fan dB(A) | 60.00 |
| Weight (kg) | 300.00 |
| HS Code | 94032080 |
