NF X 15-211 Ductless fume hoods - Filtering safety cabinets - Ventilation

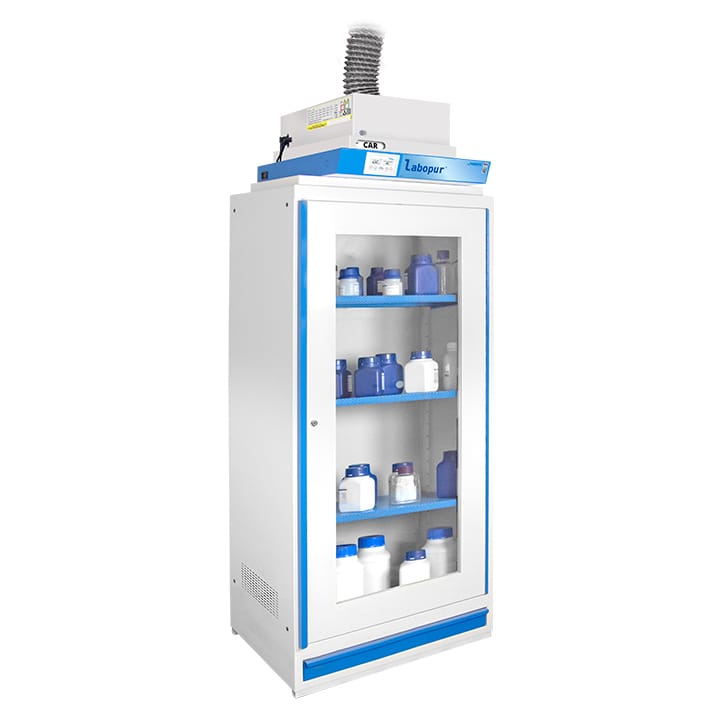

Ventilated cabinet for external connection - High 1 door
Model: AF2+XT
Ventilated cabinet for external connection - High 1 door
CE certified. Storage of flammables, corrosives and toxics. FILTRALARME 5 touchscreen interface, ventilation system operation. Normalized labelling provided with the equipment. No modification of building's structure required. Fan in compliance with CE specifications. Directives 2014/35/UE (Basse Tension), 2014/30/UE (CEM). Compliance with the regulations EN 61010-1 :2011+A1 : 2019. ComplianceEN 61326-1 :2013. Conformity IEC 61000-3-2 :2019, IEC 61000-3-3 :2013+A1 :2019. Model: AF2+XT. Compliance: CE specifications. Cabinet materials: 15/10th steel and double-walled doors. Doors color: white RAL 9010. Number of doors: 1. Door closure: manual closing
- CE certified
- Storage of flammables, corrosives and toxics
- FILTRALARME 5 touchscreen interface, ventilation system operation
- Normalized labelling provided with the equipment
- No modification of building's structure required
- Fan in compliance with CE specifications
- Directives 2014/35/UE (Basse Tension), 2014/30/UE (CEM)
- Compliance with the regulations EN 61010-1 :2011+A1 : 2019
- ComplianceEN 61326-1 :2013
- Conformity IEC 61000-3-2 :2019, IEC 61000-3-3 :2013+A1 :2019.
Technical Specifications
| Model | AF2+XT |
|---|---|
| Compliance | CE specifications |
| Cabinet materials | 15/10th steel and double-walled doors |
| Doors color | white RAL 9010 |
| Number of doors | 1 |
| Door closure | manual closing |
| Shelves | 4 |
| Retention capacity (L) | 35 |
| External dimensions HxWxD (mm) | 1940 x 800 x 650 |
| Internal dimensions HxWxD (mm) | 1500 x 760 x 500 |
| Use | Storage of less aggressive products |
| Load capacity | 35 |
| Storage capacity (L) | 140 |
| Electrical power (W) | 63 |
| Sound power of the fan dB(A) | 60.00 |
| Weight (kg) | 0.00 |
| HS Code | 94032080 |
