NF X 15-211 Ductless fume hoods - Filtering safety cabinets - Ventilation

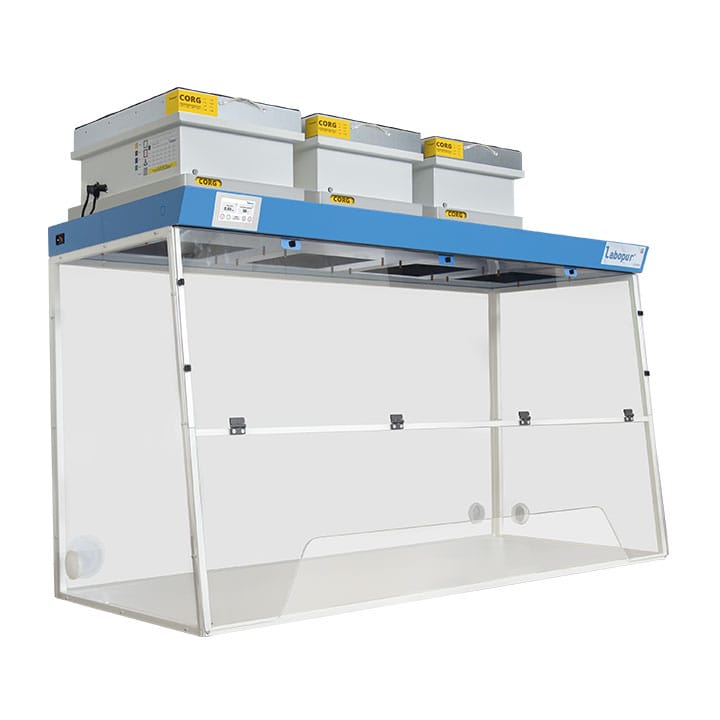

Ductless fume hood 1800 mm - 3 modules - for liquid - Large opening
Model: H183G+2C
Ductless fume hood 1800 mm - 3 modules - for liquid - Large opening
CE certified. NF X 15-211 compliant. Storage of flammables, corrosives and toxics. Standard EN 17242. Easy replacement of the active coal filter. Low acoustic level. Front control window to see immediately the filter. NF X 15-211 compliant. Delivered ready to use. Holes for the cables and fluid going through. Glass side walls. Ergonomic handles. FILTRALARME 5 touchscreen interface, ventilation system operation. Model: H183G+2C. Compliance: NF X 15-211 Class 1. External dimensions HxWxD (mm): 1240 x 1800 x 750. Internal dimensions HxWxD (mm): 935 x 1745 x 700. Airflow (m/s): 0,5. Voltage (volts): 220-240
- CE certified
- NF X 15-211 compliant
- Storage of flammables, corrosives and toxics
- Standard EN 17242
- Easy replacement of the active coal filter
- Low acoustic level
- Front control window to see immediately the filter
- NF X 15-211 compliant
- Delivered ready to use
- Holes for the cables and fluid going through
- Glass side walls
- Ergonomic handles
- FILTRALARME 5 touchscreen interface, ventilation system operation
Technical Specifications
| Model | H183G+2C |
|---|---|
| Compliance | NF X 15-211 Class 1 |
| External dimensions HxWxD (mm) | 1240 x 1800 x 750 |
| Internal dimensions HxWxD (mm) | 935 x 1745 x 700 |
| Airflow (m/s) | 0,5 |
| Voltage (volts) | 220-240 |
| Flow (m3/h) | 170 |
| Openings for passages of cables | 4 |
| Anemometer | included |
| Guide of chemicals adsorbed | included |
| Hour counter | included |
| Sampling outlet | included |
| Backwall transparent | included |
| Containment sump | option |
| Melamine work-top | option |
| Electrical power (W) | 63 |
| Sound power of the fan dB(A) | 60.00 |
| Weight (kg) | 70.00 |
| HS Code | 84146000 |
