EN 14470-1 - EN 14470-2 safety cabinets

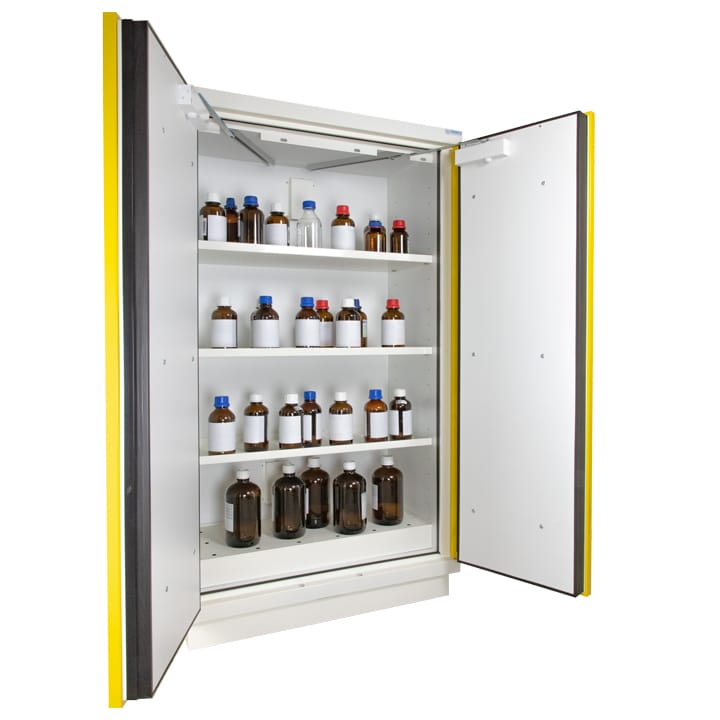

2- yellow door tall safety cabinet Type 90
Model: 795+PJE
2- yellow door tall safety cabinet Type 90
EN 14470-1 and FM 6050 compliant. Storage of flammables. Tested 105 min - from outside to inside in accordance with standard EN14470-1. Fire resistance 90 min - Tested and approved to standard EN 14470-1 and EN 1363-1. Thermo-expanding seals of the doors. Locking system. Holes for the connection to the ventilation. Normalized labelling provided with the equipment. Fixation for earthing. Tested and approved according to FM 6050. Tested and approved with ISO 834 fire heating curve by an European laboratory. Adjustable shelves in height. Model: 795+PJE. Compliance: EN 14470-1, EN 1363-1. Cabinet materials: 12/10th epoxy painted steel structure. Doors color: yellow. Number of doors: 2. Doors type: swing doors
- EN 14470-1 and FM 6050 compliant
- Storage of flammables
- Tested 105 min - from outside to inside in accordance with standard EN14470-1
- Fire resistance 90 min - Tested and approved to standard EN 14470-1 and EN 1363-1
- Thermo-expanding seals of the doors
- Locking system
- Holes for the connection to the ventilation
- Normalized labelling provided with the equipment
- Fixation for earthing
- Tested and approved according to FM 6050
- Tested and approved with ISO 834 fire heating curve by an European laboratory
- Adjustable shelves in height
Technical Specifications
| Model | 795+PJE |
|---|---|
| Compliance | EN 14470-1, EN 1363-1 |
| Cabinet materials | 12/10th epoxy painted steel structure |
| Doors color | yellow |
| Number of doors | 2 |
| Doors type | swing doors |
| Hinges | right & left |
| Door closure | self-closing |
| Openings diameter (mm) | 100 |
| Connecting sleeve | 1 |
| Number of compartments | 1 |
| Shelves | 3 |
| Containment sump | 1 |
| Retention capacity (L) | 77 |
| External dimensions HxWxD (mm) | 1950 x 1137 x 620 |
| Internal dimensions HxWxD (mm) | 1620 x 1000 x 410 |
| Shipping dimensions HxWxD (mm) | 2150 x 1200 x 800 |
| Load capacity | 50 |
| Storage capacity (L) | 250 |
| Weight (kg) | 453.00 |
| HS Code | 94032080 |
