NF X 15-211 Ductless fume hoods - Filtering safety cabinets - Ventilation

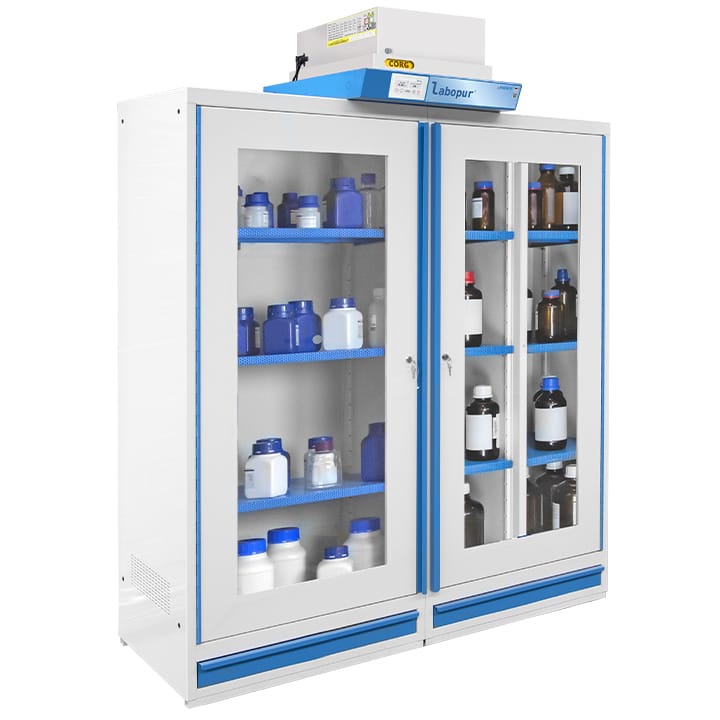

2- glass door tall safety cabinet with filtration - 3 compartments
Model: AF43+
2- glass door tall safety cabinet with filtration - 3 compartments
CE certified. NF X 15-211 compliant. Storage of flammables, corrosives and toxics. Standard EN 17242. Stop 99,97% of the particles with a diameter bigger than 0.3 µm. Active coal filters adsorption capacity and filtration system certified NF X 15-211. Complies with risk prevention and safety recommendations. Available with different configurations : 1, 2, 3 or 4 compartments. Perforated shelves. Front control window to see immediately the filter. To be equiped with an activated carbon filter tested to standard NF X 15-211. FILTRALARME 5 touchscreen interface, ventilation system operation. Normalized labelling provided with the equipment. No modification of building's structure required. Fan in compliance with CE specifications. Model: AF43+. Compliance: NF X 15-211, Electric fan in compliance with CE specifications. Cabinet materials: 15/10th epoxy painted steel structure, Double-wall. Doors color: white RAL 9010. Number of doors: 2. Doors type: swing doors
- CE certified
- NF X 15-211 compliant
- Storage of flammables, corrosives and toxics
- Standard EN 17242
- Stop 99,97% of the particles with a diameter bigger than 0.3 µm
- Active coal filters adsorption capacity and filtration system certified NF X 15-211
- Complies with risk prevention and safety recommendations
- Available with different configurations : 1, 2, 3 or 4 compartments
- Perforated shelves
- Front control window to see immediately the filter
- To be equiped with an activated carbon filter tested to standard NF X 15-211
- FILTRALARME 5 touchscreen interface, ventilation system operation
- Normalized labelling provided with the equipment
- No modification of building's structure required
- Fan in compliance with CE specifications
Technical Specifications
| Model | AF43+ |
|---|---|
| Compliance | NF X 15-211, Electric fan in compliance with CE specifications |
| Cabinet materials | 15/10th epoxy painted steel structure, Double-wall |
| Doors color | white RAL 9010 |
| Number of doors | 2 |
| Doors type | swing doors |
| Hinges | right & left |
| Number of compartments | 3 |
| Shelves | 4 |
| Containment sump | 3 |
| Retention capacity (L) | 50 |
| External dimensions HxWxD (mm) | 1940 x 1600 x 650 |
| Internal dimensions HxWxD (mm) | 1660 x (1 x )780+(2 x )380 x 500 |
| Load capacity | 60 |
| Storage capacity (L) | 260 |
| Electrical power (W) | 63 |
| Sound power of the fan dB(A) | 60.00 |
| Weight (kg) | 0.00 |
| HS Code | 94032080 |
