EN 14470-1 - EN 14470-2 safety cabinets

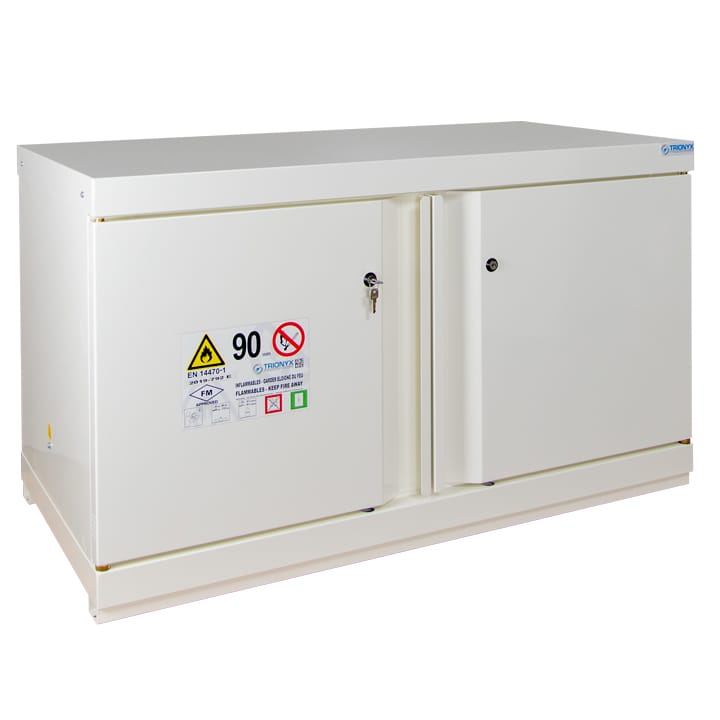

2- door underbench safety cabinet Type 90 - with waste recovery
Model: 792+ARD
2- door underbench safety cabinet Type 90 - with waste recovery
EN 14470-1 and EN 1363-1 compliant. Storage of flammables. Thermo-expanding seals of the doors. Locking system. Holes for the connection to the ventilation. Normalized labelling provided with the equipment. Fixation for earthing. 90-minute fire resistant according to EN 14470-1, and tested until 105 minute. Tested and approved according to FM 6050. Tested and approved with ISO 834 fire heating curve by an European laboratory. Complete system for recovery of waste provided. Model: 792+ARD. Compliance: EN 14470-1, EN 1363-1. Cabinet materials: 12/10th epoxy painted steel structure. Doors color: white RAL 9010. Number of doors: 2. Doors type: swing doors
- EN 14470-1 and EN 1363-1 compliant
- Storage of flammables
- Thermo-expanding seals of the doors
- Locking system
- Holes for the connection to the ventilation
- Normalized labelling provided with the equipment
- Fixation for earthing
- 90-minute fire resistant according to EN 14470-1, and tested until 105 minute
- Tested and approved according to FM 6050
- Tested and approved with ISO 834 fire heating curve by an European laboratory
- Complete system for recovery of waste provided
Technical Specifications
| Model | 792+ARD |
|---|---|
| Compliance | EN 14470-1, EN 1363-1 |
| Cabinet materials | 12/10th epoxy painted steel structure |
| Doors color | white RAL 9010 |
| Number of doors | 2 |
| Doors type | swing doors |
| Hinges | right & left |
| Door closure | self-closing |
| Openings diameter (mm) | 100 |
| Number of compartments | 1 |
| Retention capacity (L) | 41 |
| External dimensions HxWxD (mm) | 630 x 1137 x 570 |
| Internal dimensions HxWxD (mm) | 420 x 1000 x 285 |
| Shipping dimensions HxWxD (mm) | 900 x 1200 x 800 |
| Storage capacity (L) | 60 |
| Weight (kg) | 230.00 |
| HS Code | 94032080 |
