EN 14470-1 - EN 14470-2 safety cabinets

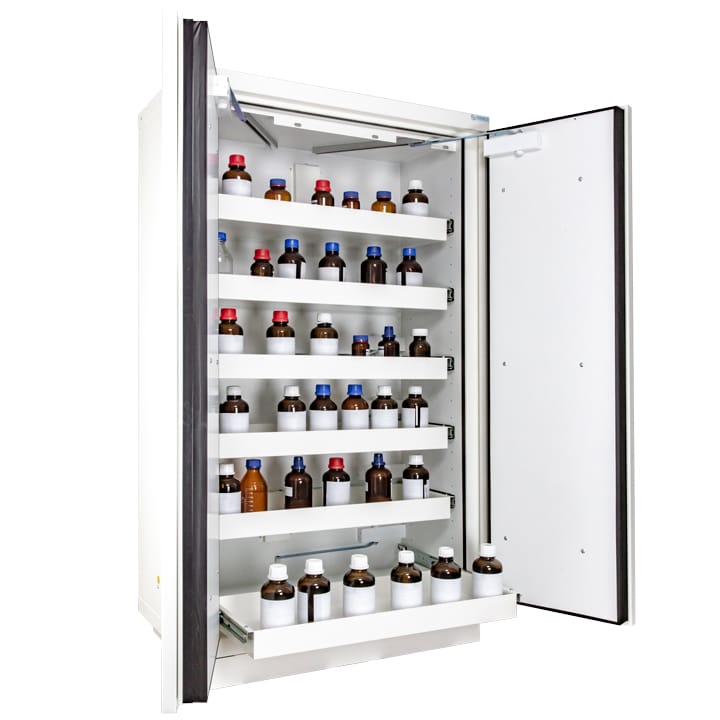

2- door tall safety cabinet Type 90 with 6 sliding drawers
Model: 795+T6
2- door tall safety cabinet Type 90 with 6 sliding drawers
EN 14470-1 and EN 1363-1 compliant. Storage of flammables. Fire resistance 90 min - Tested and approved to standard EN 14470-1 and EN 1363-1. Tested 105 min - from outside to inside in accordance with standard EN14470-1. Adjustable shelves in height. Locking system. Thermo-expanding seals of the doors. Holes for the connection to the ventilation. Normalized labelling provided with the equipment. Fixation for earthing. Tested and approved according to FM 6050. Tested and approved with ISO 834 fire heating curve by an European laboratory. Model: 795+T6. Compliance: EN 14470-1. Cabinet materials: 12/10th epoxy painted steel structure. Doors color: white RAL 9010. Number of doors: 2. Doors type: swing doors
- EN 14470-1 and EN 1363-1 compliant
- Storage of flammables
- Fire resistance 90 min - Tested and approved to standard EN 14470-1 and EN 1363-1
- Tested 105 min - from outside to inside in accordance with standard EN14470-1
- Adjustable shelves in height
- Locking system
- Thermo-expanding seals of the doors
- Holes for the connection to the ventilation
- Normalized labelling provided with the equipment
- Fixation for earthing
- Tested and approved according to FM 6050
- Tested and approved with ISO 834 fire heating curve by an European laboratory
Technical Specifications
| Model | 795+T6 |
|---|---|
| Compliance | EN 14470-1 |
| Cabinet materials | 12/10th epoxy painted steel structure |
| Doors color | white RAL 9010 |
| Number of doors | 2 |
| Doors type | swing doors |
| Hinges | right & left |
| Door closure | self-closing |
| Openings diameter (mm) | 100 |
| Number of compartments | 1 |
| Containment sump | 6 |
| Retention capacity (L) | 168 |
| External dimensions HxWxD (mm) | 1950 x 1137 x 620 |
| Internal dimensions HxWxD (mm) | 1620 x 1000 x 410 |
| Shipping dimensions HxWxD (mm) | 2150 x 1200 x 800 |
| Load capacity | 50 |
| Storage capacity (L) | 250 |
| Weight (kg) | 507.00 |
| HS Code | 94032080 |
