EN 14470-1 - EN 14470-2 safety cabinets

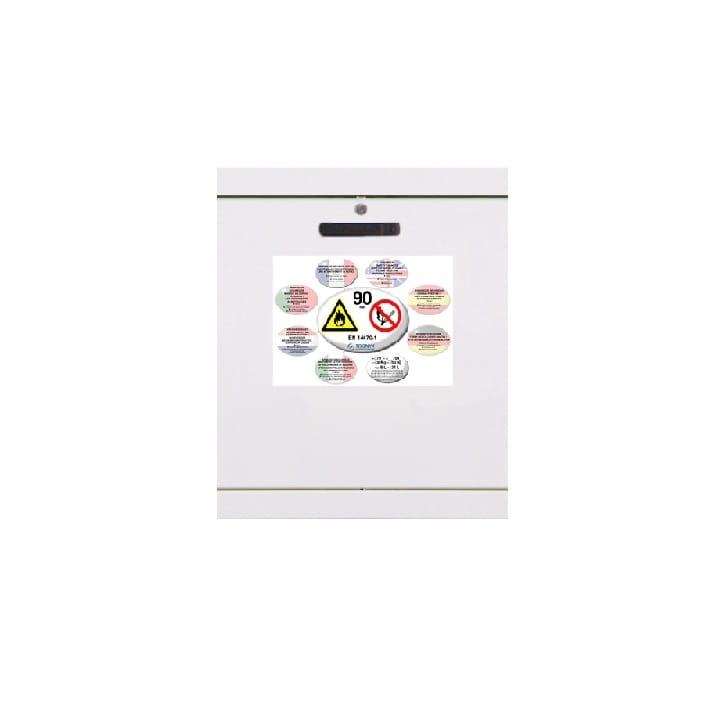

1- sliding door underbench safety cabinet Type 90
Model: 791T
1- sliding door underbench safety cabinet Type 90
EN 14470-1 and FM 6050 compliant. Storage of flammables. Thermo-expanding seals of the doors. Locking system. Holes for the connection to the ventilation. Normalized labelling provided with the equipment. Fixation for earthing. 90-minute fire resistant according to EN 14470-1, and tested until 105 minute. Tested and approved according to FM 6050. Tested and approved with ISO 834 fire heating curve by an European laboratory. Model: 791T. Compliance: EN 14470-1, EN 1363-1. Cabinet materials: 12/10th epoxy painted steel structure. Doors color: white RAL 9010. Number of doors: 1. Doors type: sliding doors
- EN 14470-1 and FM 6050 compliant
- Storage of flammables
- Thermo-expanding seals of the doors
- Locking system
- Holes for the connection to the ventilation
- Normalized labelling provided with the equipment
- Fixation for earthing
- 90-minute fire resistant according to EN 14470-1, and tested until 105 minute
- Tested and approved according to FM 6050
- Tested and approved with ISO 834 fire heating curve by an European laboratory
EN 14470-1EN 14470-2NF X 15-211
Technical Specifications
| Model | 791T |
|---|---|
| Compliance | EN 14470-1, EN 1363-1 |
| Cabinet materials | 12/10th epoxy painted steel structure |
| Doors color | white RAL 9010 |
| Number of doors | 1 |
| Doors type | sliding doors |
| Hinges | right |
| Door closure | self-closing |
| Openings diameter (mm) | 100 |
| Number of compartments | 1 |
| Containment sump | 1 |
| Retention capacity (L) | 20 |
| External dimensions HxWxD (mm) | 670 x 635 x 615 |
| Internal dimensions HxWxD (mm) | 460 x 490 x 380 |
| Shipping dimensions HxWxD (mm) | 900 x 1200 x 800 |
| Storage capacity (L) | 30 |
| Weight (kg) | 155.00 |
| HS Code | 94032080 |
