NF X 15-211 Ductless fume hoods - Filtering safety cabinets - Ventilation

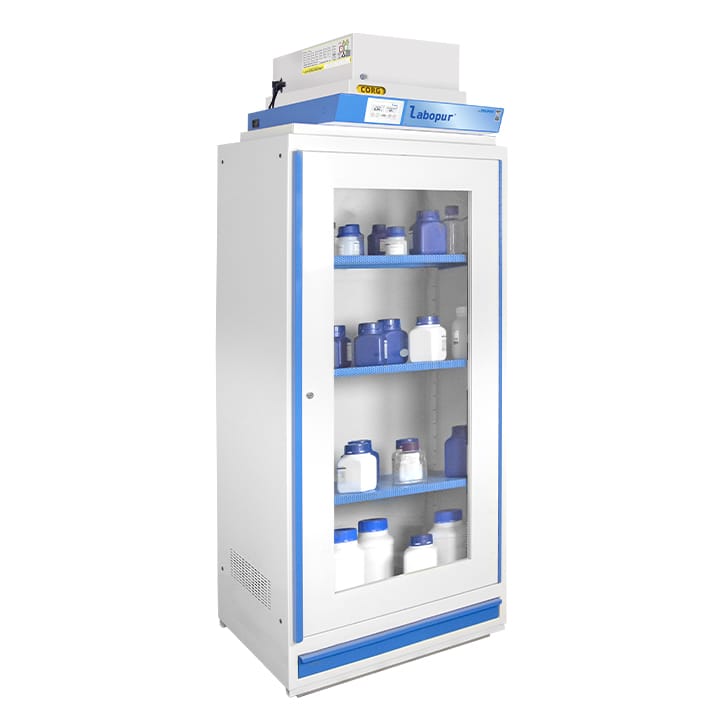

1- glass door tall safety cabinet with filtration
Model: AF2+
1- glass door tall safety cabinet with filtration
CE certified. NF X 15-211 compliant. Storage of flammables, corrosives and toxics. Standard EN 17242. Stop 99,97% of the particles with a diameter bigger than 0.3 µm. Active coal filters adsorption capacity and filtration system certified NF X 15-211. Complies with risk prevention and safety recommendations. Perforated shelves. Easy replacement of the active coal filter. Front control window to see immediately the filter. To be equiped with an activated carbon filter tested to standard NF X 15-211. FILTRALARME 5 touchscreen interface, ventilation system operation. Normalized labelling provided with the equipment. No modification of building's structure required. Fan in compliance with CE specifications. Model: AF2+. Compliance: NF X 15-211, Electric fan in compliance with CE specifications. Cabinet materials: 15/10th steel and double-walled doors. Doors color: white RAL 9010. Number of doors: 1. Doors type: swing doors
- CE certified
- NF X 15-211 compliant
- Storage of flammables, corrosives and toxics
- Standard EN 17242
- Stop 99,97% of the particles with a diameter bigger than 0.3 µm
- Active coal filters adsorption capacity and filtration system certified NF X 15-211
- Complies with risk prevention and safety recommendations
- Perforated shelves
- Easy replacement of the active coal filter
- Front control window to see immediately the filter
- To be equiped with an activated carbon filter tested to standard NF X 15-211
- FILTRALARME 5 touchscreen interface, ventilation system operation
- Normalized labelling provided with the equipment
- No modification of building's structure required
- Fan in compliance with CE specifications
Technical Specifications
| Model | AF2+ |
|---|---|
| Compliance | NF X 15-211, Electric fan in compliance with CE specifications |
| Cabinet materials | 15/10th steel and double-walled doors |
| Doors color | white RAL 9010 |
| Number of doors | 1 |
| Doors type | swing doors |
| Door closure | manual closing |
| Number of compartments | 1 |
| Shelves | 4 |
| Containment sump | 1 |
| Retention capacity (L) | 35 |
| External dimensions HxWxD (mm) | 1940 x 800 x 650 |
| Internal dimensions HxWxD (mm) | 1500 x 760 x 500 |
| Use | Storage of less aggressive products |
| Load capacity | 60 |
| Storage capacity (L) | 140 |
| Electrical power (W) | 63 |
| Sound power of the fan dB(A) | 60.00 |
| Weight (kg) | 0.00 |
| HS Code | 94032080 |
