EN 14470-1 - EN 14470-2 safety cabinets

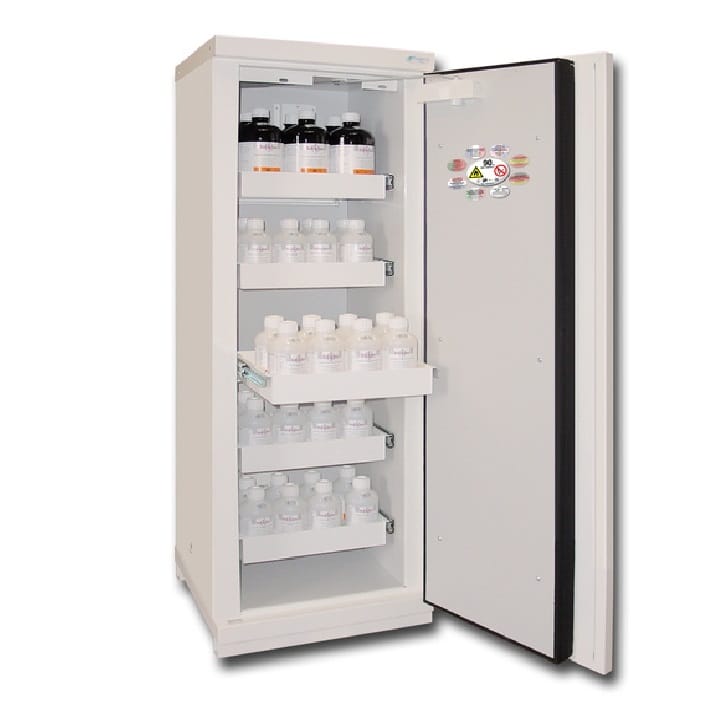

1- door tall safety cabinet Type 90 with 5 sliding drawers
Model: 794+T5
1- door tall safety cabinet Type 90 with 5 sliding drawers
EN 14470-1 and EN 1363-1 compliant. Storage of flammables. Tested 105 min - from outside to inside in accordance with standard EN14470-1. Fire resistance 90 min - Tested and approved to standard EN 14470-1 and EN 1363-1. Adjustable shelves in height. Locking system. Thermo-expanding seals of the doors. Holes for the connection to the ventilation. Normalized labelling provided with the equipment. Fixation for earthing. 90-minute fire resistant according to EN 14470-1, and tested until 105 minute. Tested and approved according to FM 6050. Tested and approved with ISO 834 fire heating curve by an European laboratory. Model: 794+T5. Compliance: EN 14470-1. Cabinet materials: 12/10th epoxy painted steel structure. Doors color: white RAL 9010. Number of doors: 2. Doors type: swing doors
- EN 14470-1 and EN 1363-1 compliant
- Storage of flammables
- Tested 105 min - from outside to inside in accordance with standard EN14470-1
- Fire resistance 90 min - Tested and approved to standard EN 14470-1 and EN 1363-1
- Adjustable shelves in height
- Locking system
- Thermo-expanding seals of the doors
- Holes for the connection to the ventilation
- Normalized labelling provided with the equipment
- Fixation for earthing
- 90-minute fire resistant according to EN 14470-1, and tested until 105 minute
- Tested and approved according to FM 6050
- Tested and approved with ISO 834 fire heating curve by an European laboratory
Technical Specifications
| Model | 794+T5 |
|---|---|
| Compliance | EN 14470-1 |
| Cabinet materials | 12/10th epoxy painted steel structure |
| Doors color | white RAL 9010 |
| Number of doors | 2 |
| Doors type | swing doors |
| Hinges | right |
| Door closure | self-closing |
| Openings diameter (mm) | 100 |
| Number of compartments | 1 |
| Containment sump | 5 |
| Retention capacity (L) | 60 |
| External dimensions HxWxD (mm) | 1950 x 635 x 620 |
| Internal dimensions HxWxD (mm) | 1620 x 490 x 410 |
| Shipping dimensions HxWxD (mm) | 2150 x 1200 x 800 |
| Load capacity | 30 |
| Storage capacity (L) | 130 |
| Weight (kg) | 307.00 |
| HS Code | 94032080 |
